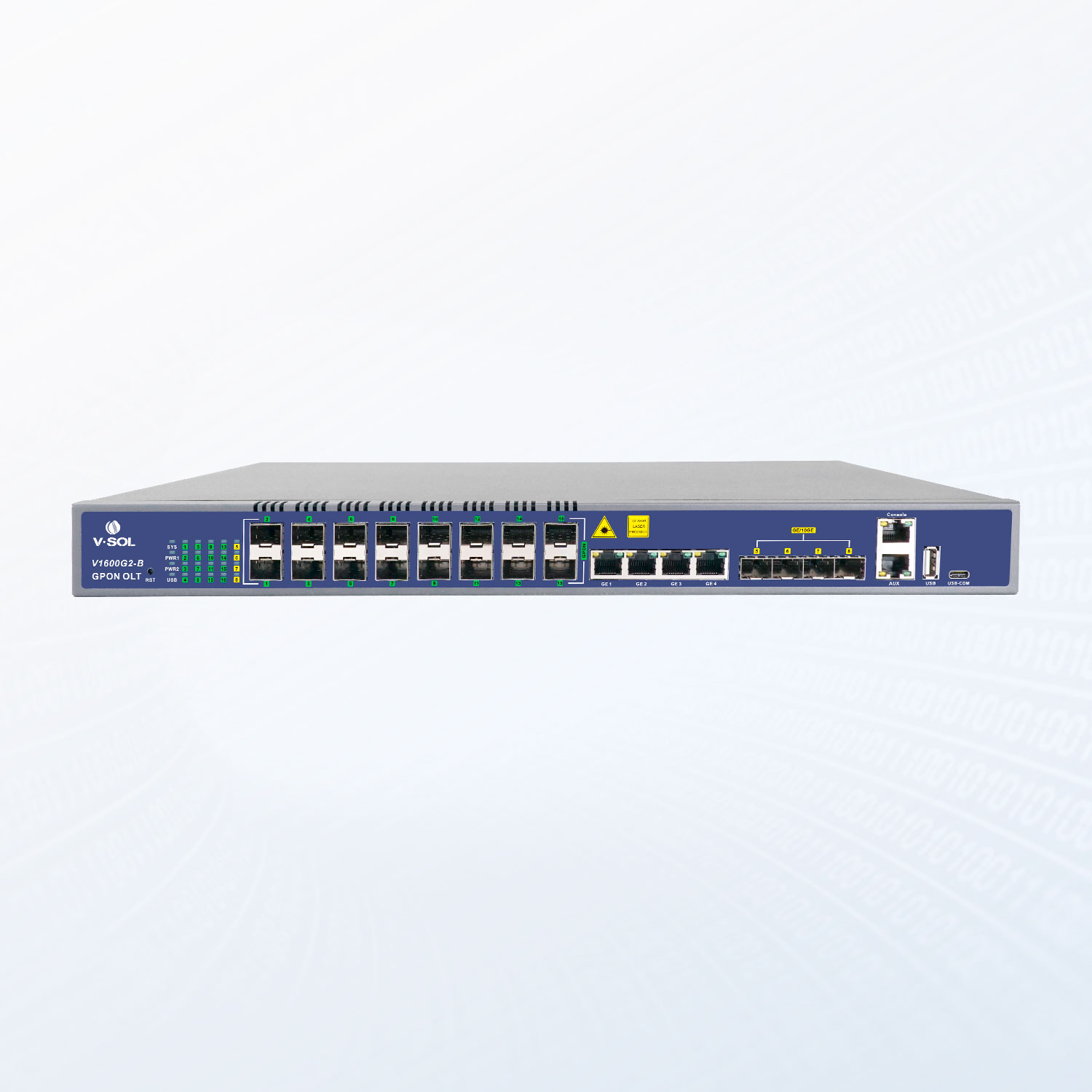

V-SOL V1600G2-B 16 Port GPON OLT

• 16 Port GPON OLT
  Model: V1600G2-B
  Spec: 16*GPON,4GE(RJ45)+4*10GE(SFP+)
  Dual power modules available in DC/AC，support hot-swap
• Chassis Rack 1U 19Inch Standard Box
  Uplink Port
  QTY 8
  RJ45(GE) 4
  SFP(GE)/SFP+(10GE) 4
  GPON Port
  QTY 16
  Physical Interface SFP Slots
  Max splitting ratio 1:128
  Management Ports
  1*10/100/1000BASE-T out-band port, 1*CONSOLEport, 1*USB2.0, 1*Type-C USB (for console)
  Backplane Bandwidth (Gbps) 208
  Port Forwarding Rate(Mpps) 124.992
  PON Port Specification
  Transmission Distance 20KM
  GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
  Wavelength TX 1490nm, RX 1310nm
  Connector SC/UPC
  Fiber Type 9/125μm SMF
  Supported PON module level Class B+, C, C+, C++, C+++ Power Supply
  AC Working Voltage Range: 100~240V, Rated Voltage: 110V/220VDC Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60VManagement Mode EMS, WEB, SNMP, Telnet , CLI

Datasheet V1600G2-B
